FS: M Coupe Sub Boxes

[Mister X]

Finally finished building these things. I sent a few pms out to people who had expressed interest earlier, so it looks like a few might have sold.

Basically, I made 10, not sure if I'll ever make more, but if I do, the price will go up.

Right now its set at 350+ shipping.

Box features:

-.55 cubic feet of airspace
-CNC cut flush mount ring, made out of double layered 3/4'' mdf
-90% Factory match carpet
-Preloaded with polyfill
-Comes with easy to connect wiring terminal with subwoofer wire already soldered in
-Designed with Elemental Designs 11kv.2 and 11ov.2 in mind, unsure of other subwoofers that will fit
------Kv.2
------Ov.2

Other subs that should work properly in the box:

Image Dynamics IDQ 10 v2
Image Dynamics ID10 v3
Hertz ES 250

As far as fitment, optimal fitment with the factory trunk liner, still good fitment without

If you have any questions feel free to post here or send me a private message

[Jonny Z3]

they look really nice installed

[jr1966]

How are they secured? How is the access to the taillight bulbs?

[Mister X]

Originally Posted by jr1966

How are they secured? How is the access to the taillight bulbs?

The trim panel on top holds it in, it's a 5 minute procedure to pop it in and out, and when I say 5 minutes, I mean 5 minutes tops, so access to the bulbs is not a big deal.

[fmcfad01]

how does the coupe handle all the power you are pushing through your amp to all your speakers and sub? Did you have to install a cap?

[ken_vs_ryu]

That looks very professional.

[Vinci]

Those look fantastic!

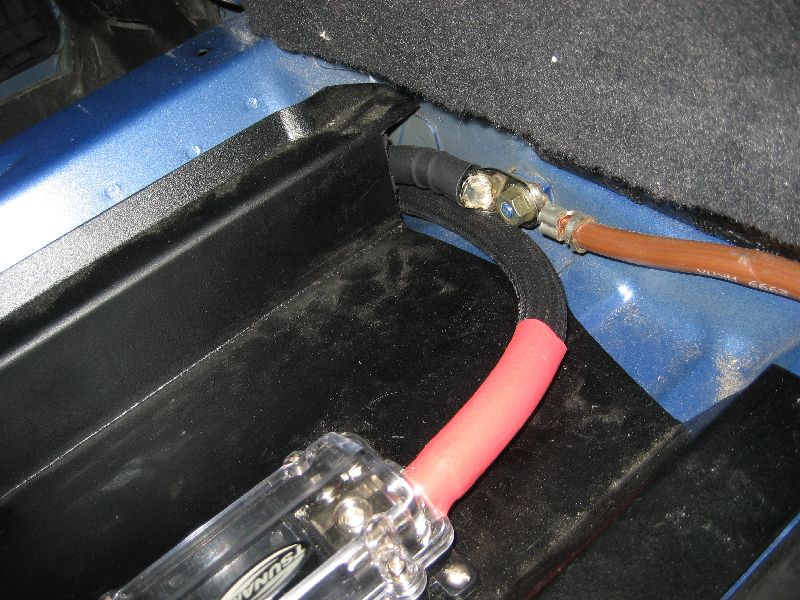

That amp is massive. It looks like you have 000 cable running to it...

[Mister X]

Originally Posted by fmcfad01

how does the coupe handle all the power you are pushing through your amp to all your speakers and sub? Did you have to install a cap?

It actually handles it very well, but I do have a pretty new battery. Very slight dimming when it is being played full blast at idle, but I never really come across that situation in the real world

Originally Posted by Vinci

Those look fantastic!

That amp is massive. It looks like you have 000 cable running to it...

[Ghery]

I think i am the only one with this box so far.

Few notes:

It WILL fit a non-M (with some modification)

Box is very secure in there, doesn't move even during really really tight cornering.

Box is VERY easy to remove if you need to get to the bults. It's just one screw with the top panel.

No rattles or anything

Sound is great, many have heard it.

Looks great

Uhhh, cowbell factor is fantastic

[Vinci]

Originally Posted by Mister X

That's not seriously 000... is it?

[Mister X]

Originally Posted by Vinci

That's not seriously 000... is it?

It's 0 awg, amp does 100x4 and 600x1

[Mister X]

First one has officially sold

[Z3speed4me]

well i figure any sub that has the same mount depth would fit...

but i gather you think the elemental is the best decision for the given factors???



i wanna buy one ahead of time, but not 100% sure if the funds for the coupe are comming next year or not

either way, AWESOME looking product

[Mister X]

There are a few things you need to check if you want to see if another sub will fit, mounting depth, if its around the ov.2 you should be fine, airspace, self explanatory, and also the cutout and outside diameter, which is probably the most important.

I chose the ED subs for a few reasons, excellent performance per dollar, they work well in small boxes, and they let me offer two subs of different performance levels for the same box

[Z3speed4me]

understandable.... dont see why you wouldnt want the better one.... its barely a price difference, unless people are too cheap to buy an adaquate amp to drive it...

[jr1966]

Originally Posted by Sound Of Speed

It WILL fit a non-M (with some modification)

What is the difference between an M and a non-M in that area?

[Scott Digital]

Bravo, they look great!!

Congrads.

[Ghery]

Originally Posted by jr1966

What is the difference between an M and a non-M in that area?

Ms have the compressor on the right side there, so it's already cut out.

Non Ms have the carpeting go all the way back and have 2 small metal plates welded to the wheel well to hold up the carpet.

I had to cut out the carpets and remove the two metal pieces.

[Mister X]

Here are some photos of what we had to do to gherys car to get it to work. This is just for a non M car though, it drops right into an M.

[jr1966]

Mister X, do you still have any? I'm looking into my options now. BTW, have you sold your amp?

[EganM]

Originally Posted by jr1966

Mister X, do you still have any? I'm looking into my options now. BTW, have you sold your amp?

I can tell you that he's got one less as of this afternoon.

[Mister X]

Originally Posted by jr1966

Mister X, do you still have any? I'm looking into my options now. BTW, have you sold your amp?

I do indeed still have some left, but the amp is sold

[jr1966]

Originally Posted by Mister X

I do indeed still have some left, but the amp is sold

Ok, thanks. Being considered. Still looking at my options.

[Mister X]

Originally Posted by jr1966

Ok, thanks. Being considered. Still looking at my options.

[jr1966]

Originally Posted by Sound Of Speed

Ms have the compressor on the right side there, so it's already cut out.

Non Ms have the carpeting go all the way back and have 2 small metal plates welded to the wheel well to hold up the carpet.

I had to cut out the carpets and remove the two metal pieces.

Gary, do you have pics of what you had done to your carpet? Given the fact that the sub box has to be removed to gain access to the bulbs, I'm trying to figure out what to do with the carpet that flips open to gain access to the battery and tools without removing the sub box.

Dom, any ideas?

I'm thinking of cutting it.
